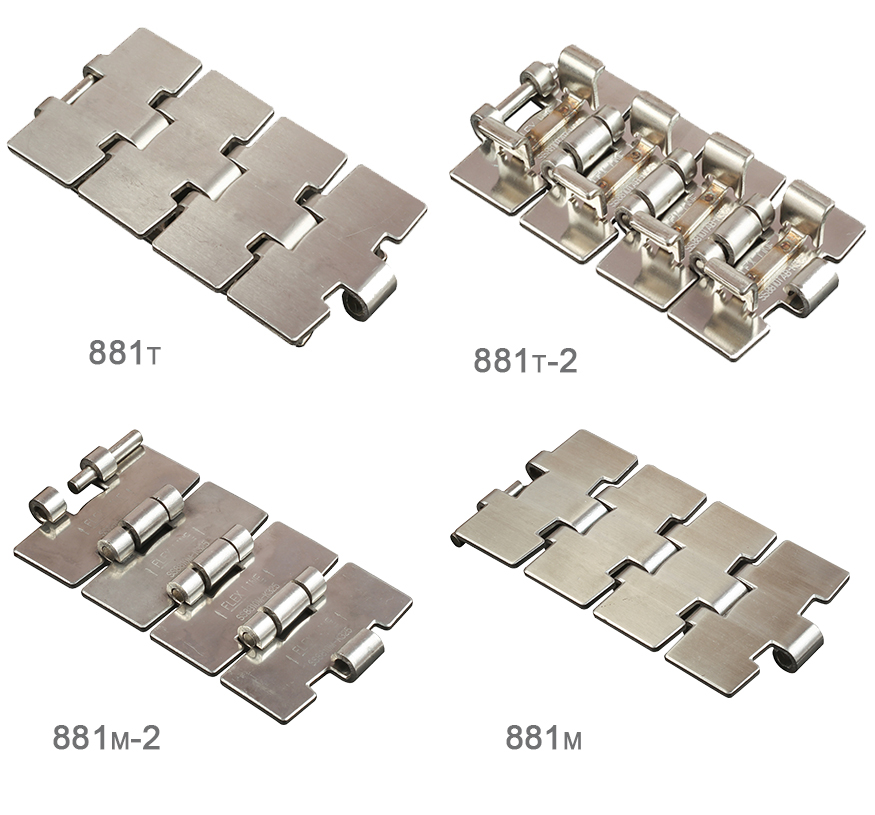

Stainless steel slat chains find application in the industries that use glass bottles like breweries, wine industry, and the soft drinks industry. Multiple configurations like straight running, side flexing, tab, and magnetic chains are available.

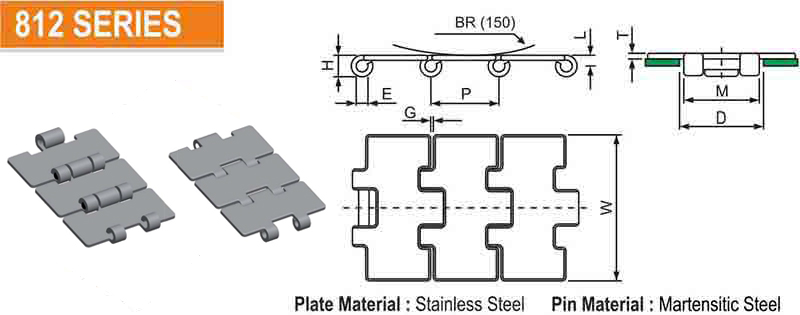

| Dimention | MM | Inches |
| P | 38.1 | 1.50 |
| M | 42.0 | 1.65 |
| L | 6.40 | 0.28 |
| H | 13.0 | 0.51 |
| E | 6.40 | 0.25 |
| T | 3.10 | 0.11 |
| G | 1.80 | 0.06 |
| D | 44.0 | 1.73 |
| Part No. | Width | Weight | |
| (mm) | (inches) | (kg/m) | |
| 812 K325 | 82.5 | 3.25 | 2.5 |
| 812 K350 | 88.9 | 3.50 | 2.7 |
| 812 K400 | 101.6 | 4.00 | 3.0 |
| 812 K450 | 114.3 | 4.50 | 3.3 |
| 812 K600 | 152.4 | 6.00 | 4.3 |
| 812 K750 | 190.5 | 7.50 | 5.2 |

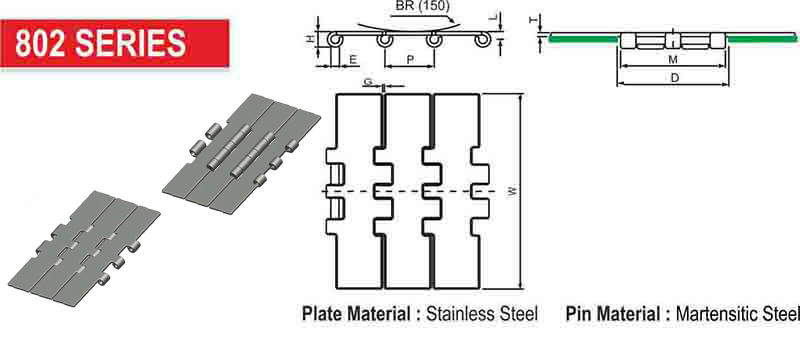

| Dimention | MM | Inches |
| P | 38.1 | 1.5 |
| M | 80 | 3.15 |
| L | 6.4 | 0.25 |
| H | 13.0 | 0.51 |
| E | 6.4 | 0.25 |
| T | 3.1 | 0.12 |
| G | 1.8 | 0.07 |
| D | 82.5 | 3.24 |
| Part No. | Width | Weight | |
| (mm) | (inches) | (kg/m) | |
| 802 K750 | 190.5 | 7.50 | 5.40 |

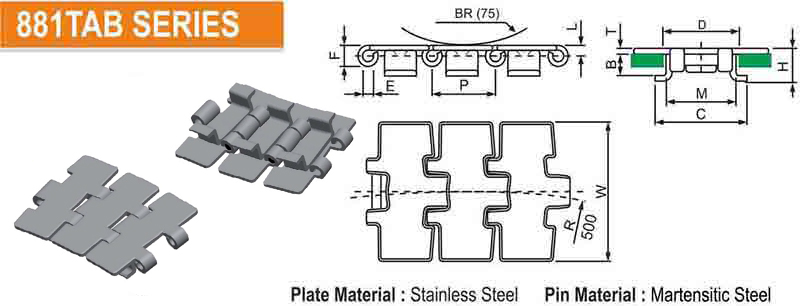

| Dimention | MM | Inches |
| P | 38.1 | 1.50 |
| L | 6.40 | 0.25 |
| H | 19.3 | 0.76 |
| E | 6.40 | 0.25 |
| T | 3.10 | 0.12 |
| C | 56.6 | 0.45 |
| B | 12.8 | 0.50 |
| M | 43.0 | 1.69 |
| F | 13.0 | 0.51 |
| D | 45.0 | 1.77 |
| Part No. | Width | Weight | |
| (mm) | (inches) | (kg/m) | |
| 881TAB K325 | 82.5 | 3.25 | 3.0 |
| 881TAB K450 | 114.3 | 4.50 | 3.7 |
| 881TAB K750 | 190.5 | 7.50 | 5.5 |

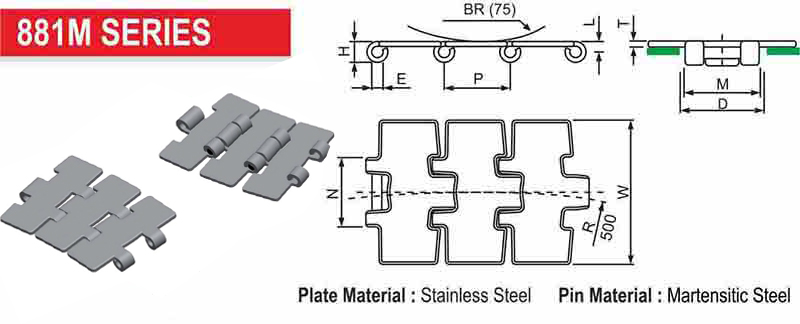

| Dimention | MM | Inches |
| P | 38.1 | 1.50 |
| M | 42.0 | 1.65 |
| L | 6.40 | 0.25 |
| H | 13.0 | 0.51 |
| E | 6.40 | 0.25 |
| T | 3.10 | 0.12 |
| D | 44.0 | 1.73 |
| Part No. | Width | Weight | |
| (mm) | (inches) | (kg/m) | |
| 881M K325 | 82.5 | 3.10 | 2.60 |
| 881M K450 | 114.3 | 4.50 | 3.10 |
| 881M K750 | 190.5 | 7.50 | 4.90 |
| Dimention | MM | Inches |
| P | 38.1 | 1.50 |
| M | 42.0 | 1.65 |
| L | 6.40 | 0.28 |
| H | 13.0 | 0.51 |
| E | 6.40 | 0.25 |
| T | 3.10 | 0.11 |
| G | 1.80 | 0.06 |
| D | 44.0 | 1.73 |
| Part No. | Width | Weight | |
| (mm) | (inches) | (kg/m) | |

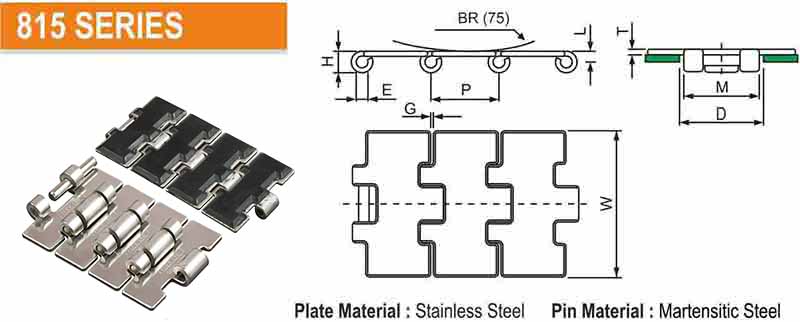

| SSE815K325VG | 82.5 | 3.25 | 2.6 |
| SSE805K750VG | 190.5 | 7.50 | 5.3 |
| Dimention | MM | Inches |
| P | 38.1 | 1.50 |
| M | 42.0 | 1.65 |
| L | 6.40 | 0.25 |
| H | 13.0 | 0.51 |
| E | 6.40 | 0.25 |
| T | 6.10 | 0.24 |
| G | 1.80 | 0.07 |
| D | 44.0 | 1.73 |
| Part No. | Width | Weight | |
| (mm) | (inches) | (kg/m) | |

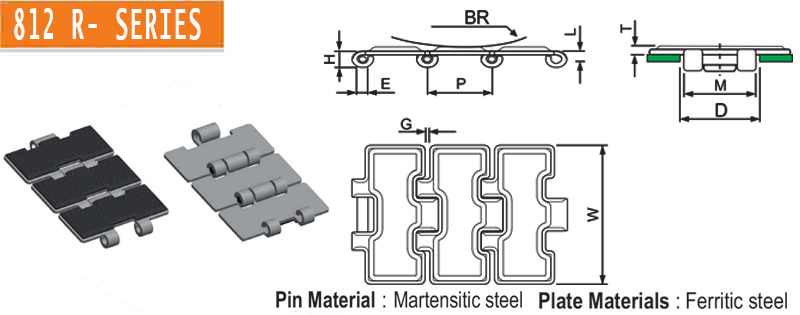

| SP812RK325 | 82.5 | 3.25 | 2.5 |

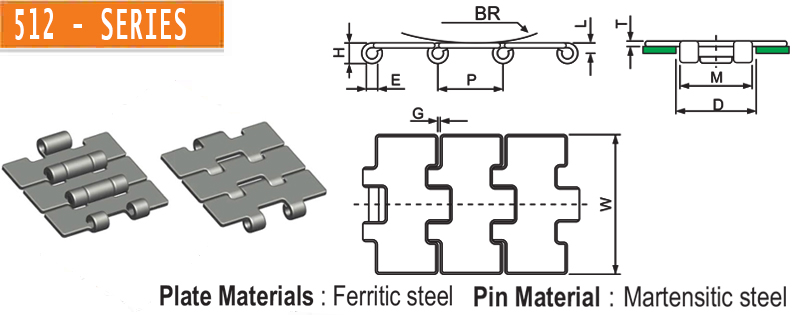

| Dimention | MM | Inches |
| P | 25.4 | 1.00 |
| M | 42.3 | 1.67 |
| L | 6.30 | 0.25 |
| H | 12.8 | 0.50 |
| E | 6.35 | 0.25 |
| T | 3.10 | 0.12 |
| G | 1.60 | 0.06 |
| D | 44.0 | 1.73 |
| Part No. | Width | Weight | |
| (mm) | (inches) | (kg/m) | |
| SP512K250 | 63.5 | 2.50 | 2.49 |
