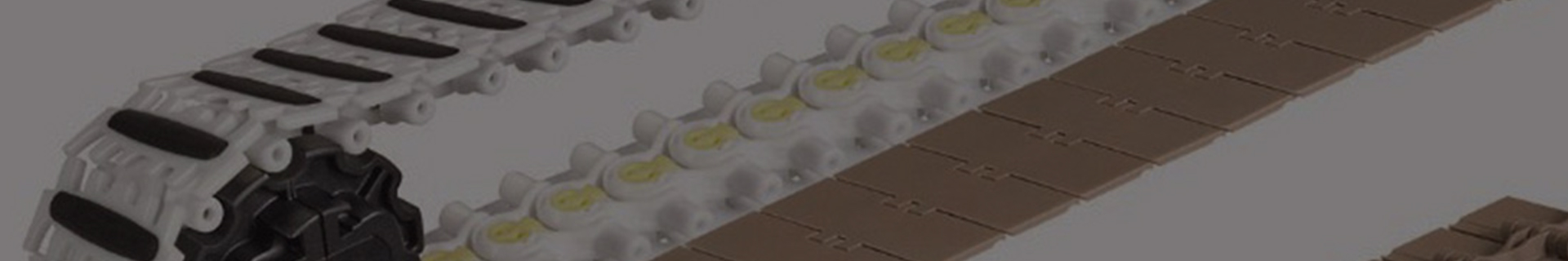

A major advantage of Thermoplastic slat chain conveyors over plate link conveyors lies within the ability of the platelets of a slat conveyor to flex, and therefore turn corners, complex loops, and even spirals. This makes them highly regarded in continuous manufacturing processes, bottling guide plants, etc.

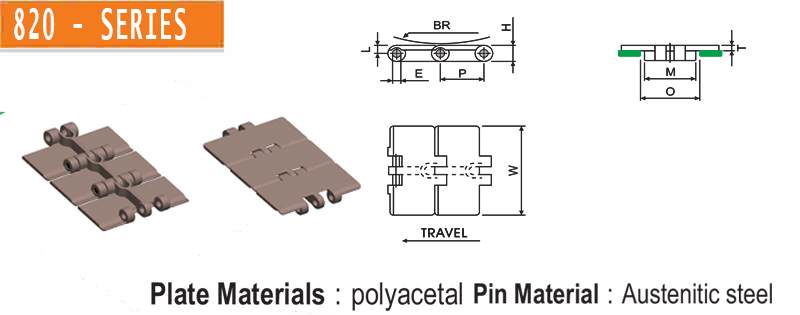

| Dimention | MM | Inches |
| P | 38.1 | 1.50 |
| M | 42.1 | 1.65 |
| L | 7.20 | 0.28 |
| H | 13.5 | 0.53 |
| E | 6.35 | 0.25 |
| T | 4.00 | 0.18 |
| O | 44.5 | 1.73 |
| Part No. | Width | Weight | |
| (mm) | (inches) | (kg/m) | |
| 820 K250 | 63.5 | 2.50 | 0.73 |
| 820 K325 | 82.5 | 3.25 | 0.83 |
| 820 K330 | 83.9 | 3.30 | 0.85 |
| 820 K350 | 88.9 | 3.50 | 0.87 |
| 820 K400 | 101.6 | 4.00 | 0.95 |
| 820 K450 | 114.3 | 4.50 | 1.03 |
| 820 K600 | 152.4 | 6.00 | 1.25 |
| 820 K750 | 190.5 | 7.50 | 1.47 |

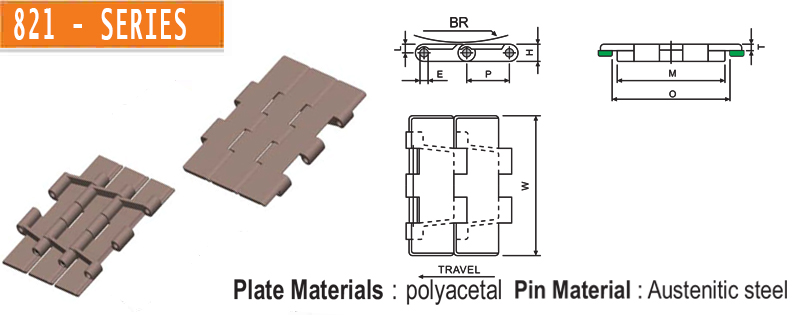

| Dimention | MM | Inches |
| P | 38.1 | 1.50 |
| M | 136.5 | 5.37 |
| L | 7.90 | 0.31 |
| H | 14.3 | 0.56 |
| E | 7.90 | 0.31 |
| T | 4.00 | 0.15 |
| O | 140 | 5.51 |
| Part No. | Width | Weight | |
| (mm) | (inches) | (kg/m) | |
| 821 K750 | 190.5 | 7.5 | 2.50 |
| 802 K1000 | 254.0 | 10 | 2.95 |
| 802 K1200 | 304.8 | 12 | 3.25 |

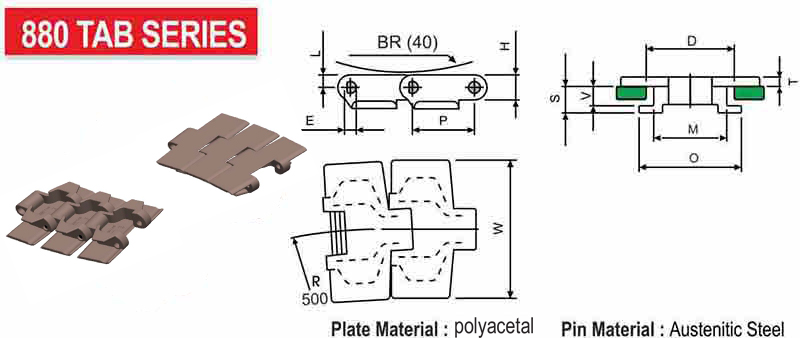

| Dimention | MM | Inches |
| P | 38.1 | 1.50 |
| O | 61.1 | 2.40 |
| L | 7.60 | 0.30 |
| H | 20.0 | 0.78 |
| E | 7.10 | 0.28 |
| T | 4.00 | 0.15 |
| V | 11.50 | 0.45 |
| S | 16.0 | 0.63 |
| M | 42.9 | 1.68 |
| D | 45.0 | 1.77 |
| Part No. | Width | Weight | |
| (mm) | (inches) | (kg/m) | |
| 880TAB K325 | 82.5 | 3.25 | 0.94 |
| 880TAB K450 | 114.3 | 4.50 | 1.08 |

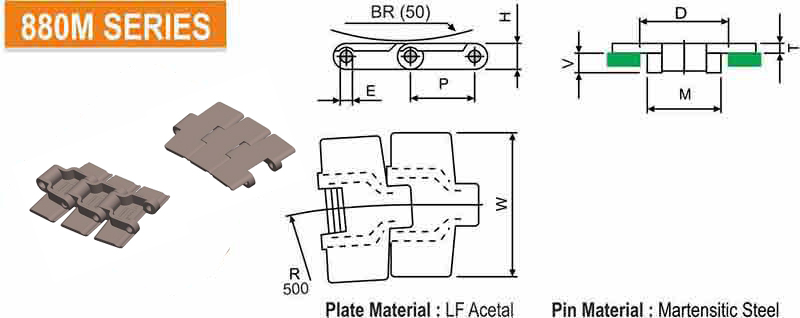

| Dimention | MM | Inches |
| P | 38.1 | 1.50 |
| M | 42.1 | 1.65 |
| L | 11.0 | 0.43 |
| H | 15.0 | 0.59 |
| E | 7.10 | 0.28 |
| T | 4.00 | 0.15 |
| O | 45.0 | 1.77 |
| Part No. | Width | Weight | |
| (mm) | (inches) | (kg/m) | |
| 880M K325 | 82.5 | 3.25 | 1.03 |
| 880M K450 | 114.3 | 4.50 | 1.16 |

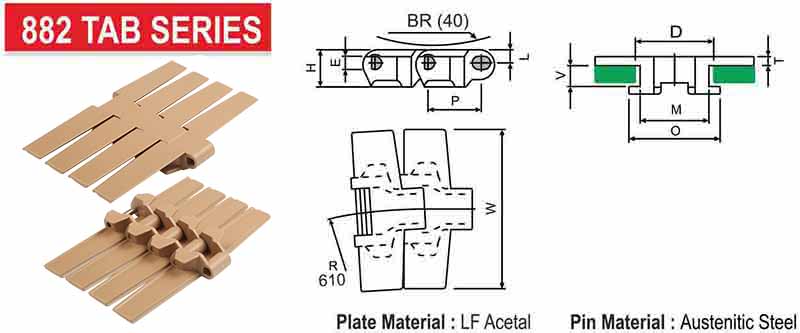

| Dimention | MM | Inches |
| P | 38.1 | 1.50 |
| O | 76.2 | 3.00 |
| L | 9.50 | 0.37 |
| H | 27.0 | 1.06 |
| E | 8.70 | 0.34 |
| T | 4.80 | 0.18 |
| V | 17.0 | 0.66 |
| M | 57.2 | 2.25 |
| D | 58 | 2.28 |
| Part No. | Width | Weight | |
| (mm) | (inches) | (kg/m) | |
| 880TAB K600 | 152.4 | 6.0 | 2.10 |
| 880TAB K750 | 190.5 | 7.50 | 2.47 |
| 880TAB K750 | 254.0 | 10 | 2.87 |
| 880TAB K750 | 304.8 | 12 | 3.41 |
